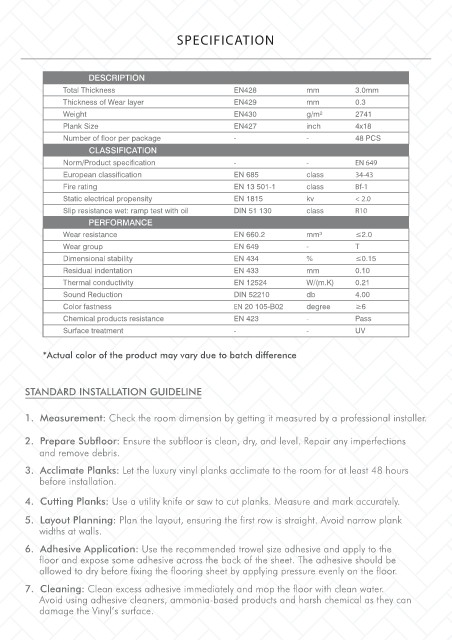

SPECIFICATION

Total Thickness EN428 mm 3.0mm
Thickness of Wear layer EN429 mm 0.3
Weight EN430 g/m² 2741
Plank Size EN427 inch 4x18
Number of floor per package - - 48 PCS

Norm/Product specification - - EN 649
European classification EN 685 class 34-43
Fire rating EN 13 501-1 class Bf-1
Static electrical propensity EN 1815 kv < 2.0
Slip resistance wet: ramp test with oil DIN 51 130 class R10

Wear resistance EN 660.2 mm³ ≤2.0
Wear group EN 649 - T
Dimensional stability EN 434 % ≤0.15
Residual indentation EN 433 mm 0.10
Thermal conductivity EN 12524 W/(m.K) 0.21
Sound Reduction DIN 52210 db 4.00
Color fastness ΕΝ 20 105-B02 degree ≥6
Chemical products resistance EN 423 - Pass
Surface treatment - - UV

*Actual color of the product may vary due to batch difference

STANDARD INSTALLATION GUIDELINE

1. Measurement: Check the room dimension by getting it measured by a professional installer.

2. Prepare Subfloor: Ensure the subfloor is clean, dry, and level. Repair any imperfections
and remove debris.

3. Acclimate Planks: Let the luxury vinyl planks acclimate to the room for at least 48 hours
before installation.

4. Cutting Planks: Use a utility knife or saw to cut planks. Measure and mark accurately.

5. Layout Planning: Plan the layout, ensuring the first row is straight. Avoid narrow plank
widths at walls.

6. Adhesive Application: Use the recommended trowel size adhesive and apply to the
floor and expose some adhesive across the back of the sheet. The adhesive should be
allowed to dry before fixing the flooring sheet by applying pressure evenly on the floor.

7. Cleaning: Clean excess adhesive immediately and mop the floor with clean water.
Avoid using adhesive cleaners, ammonia-based products and harsh chemical as they can
damage the Vinyl’s surface.
